After getting my clock code to the stage it was at in Part 2, I started to refine the code and add features. That code was pretty quick and dirty. It worked, but still needed lots of work.

I started looking at actual i2c timings. I had built my clock code by just picking a random number (100uS) that would be very conservative and probably work. It did work, but was very slow, so I looked up actual minimums - around 4 to 6uS! Quite a far cry from the 100uS I was using. So I changed to 20uS. Much faster, and some room for still faster speeds later. Works well.

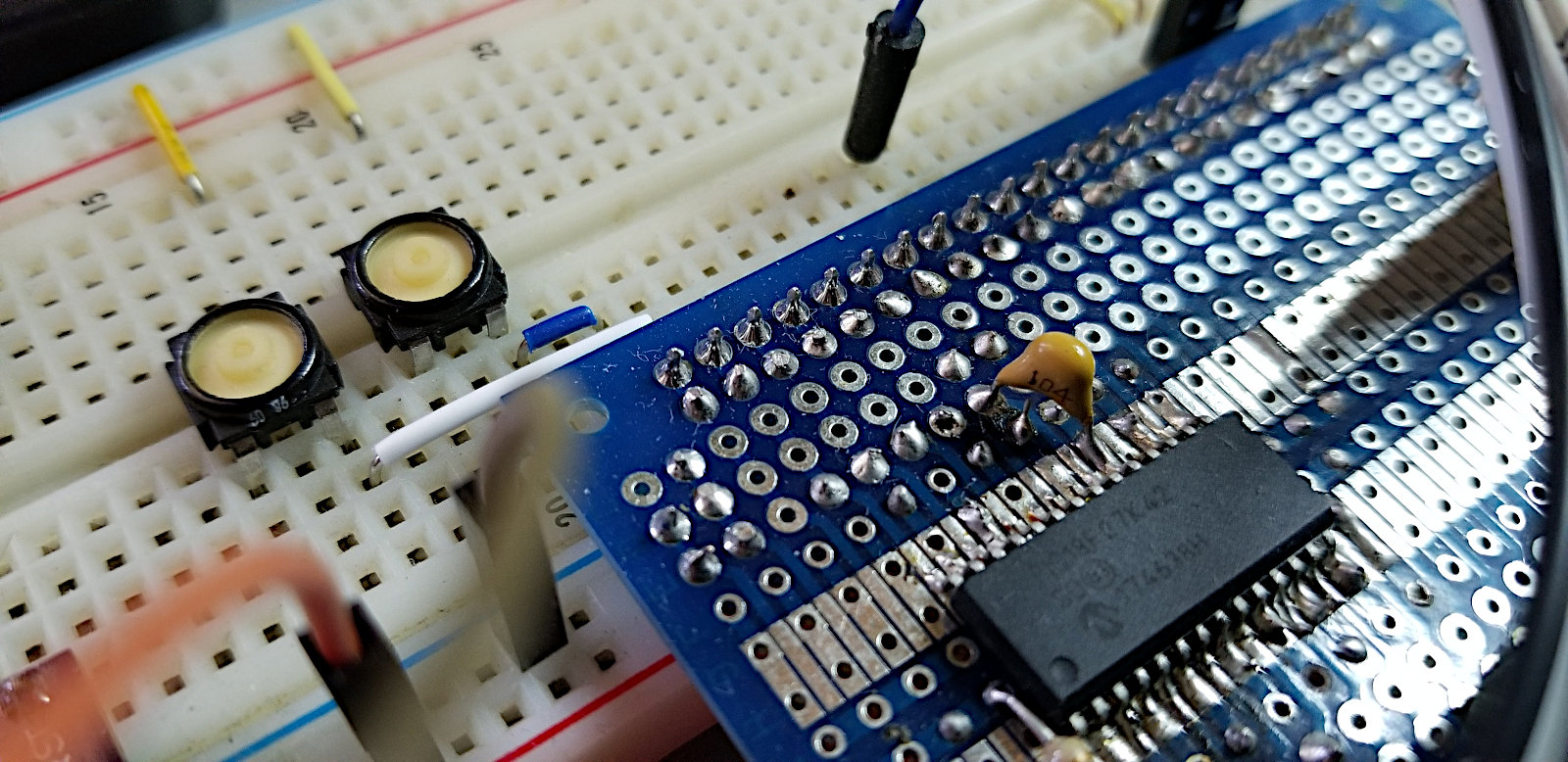

I wrote an ISR and set up Timer0 for a 122Hz interrupt to check for button presses on RA0 and RA1. Each has a counter variable that gets incremented each time through the ISR that the button is still pressed, and after 15 good readings a button good flag gets set. Pretty good way to debounce buttons. Needs a bit of fine tuning still, but the code works acceptably for now.

I'm still thinking of cutting down Timer0's frequency. Interrupts at 122Hz is more often than necessary. I could probably cut that in half and it would still work well.

The same timer also handles timing for turning off the display backlight after some seconds. In the code below the variable 'backlight_count' counts up to 2500 interrupts for about a 20 second delay (for testing). Later I'll increase that to 3660 for a 30 second delay. Pressing button1 resets that counter to zero, turning on the display backlight until the counter finishes again.

Then I looked at my crappy quick and dirty way of reading the RTC and refreshing the LCD screen every time through my main loop. I was refreshing far too often, so I took the 1Hz squarewave output from pin 3 of the DS3231, added a 4.7K pullup resistor to it and connected it to pin RB0 of the MCU. I set up interrupt-on-change for RB0 and enabled the interrupt for that. So now once a second that signal goes high and an interrupt is triggered. The code in the ISR sets the refresh flag, causing the main loop code to call the display refresh function. Once per second is perfect for a clock, obviously.

I added time setting code, so I don't have to reprogram the chip to change the time. The code is a bit primitive and needs fine tuning still, but works acceptably for now.

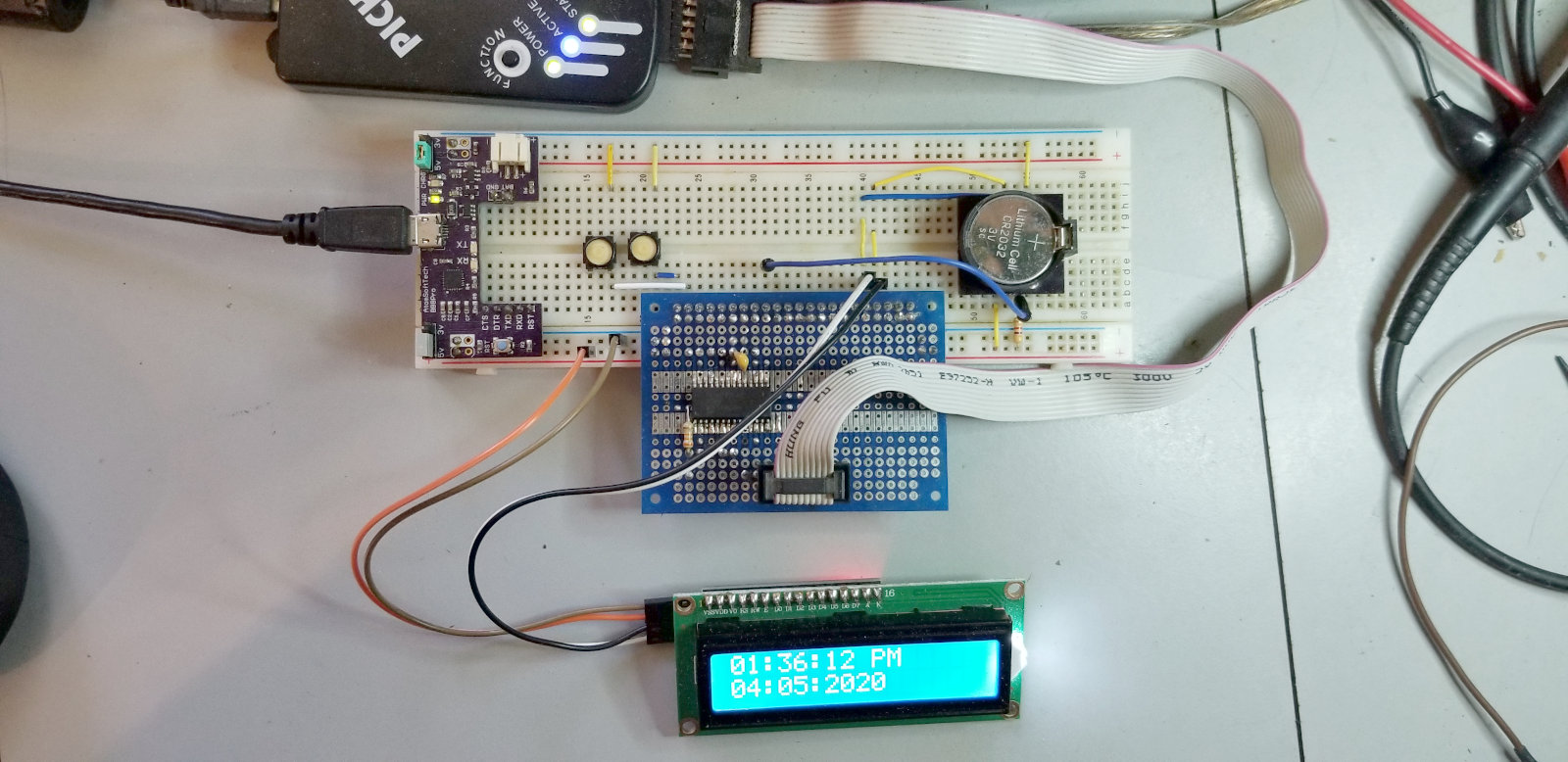

I'm going to be changing to a 20x4 LCD soon. That will allow watering time and duration to be displayed without changing screens.

Lots of work to do still. I'm pretty lazy about getting it done, but I sit down and work at it often enough that it'll eventually get somewhere.

lcd-i2c-rtc.c

NOTE: Do not use this code. Yes, it works (barely). But I've found a lot of problems in it as I expanded its functionality, and a lot of it has been rewritten. I spent an entire day chasing some crazy strangeness in my code, but instead found what I think is a serious bug in sprintf that was causing the strangeness, not to mention that sprintf is a horribly bloated piece of code. I've removed all sprintf calls and went a different way. That made program file size a lot smaller. Stay tuned for newer, better versions.

(Scroll down for .h file)

#include "lcd-i2c-rtc.h"

#define dat   TRISCbits.TRISC4
#define clk   TRISCbits.TRISC3

unsigned char sec,sec10,min,min10,hour,hour10,ampm,dayofweek,date1,date10,mon,mon10,year1,year10;
unsigned char seconds,minutes,hours,date,month,year;
char string[16];
unsigned char backlight = 0x08;   //backlight flag (bit3) enabled
int backlight_count = 0;
unsigned char button0_count = 0;  //button0 debounce counter
__bit button0_good = 0;           //button0 verified press flag
unsigned char button1_count = 0;  //button1 debounce counter
__bit button1_good = 0;           //button1 verified press flag
__bit refresh = 0;                //display refresh flag

void __interrupt() bleh()
{
  if(PIR3bits.TMR0IF && PIE3bits.TMR0IE){ //button0 pressed
    if(PORTAbits.RA0 == 0){       //if button0 pressed
      button0_count++;            //then increment button0 debounce counter
      if(button0_count > 15)      //if 15 good button0 lows
        button0_good = 1;         //then set button0 good press flag
    }

    if(PORTAbits.RA1 == 0){       //if button1 pressed
      button1_count++;            //then increment button1 debounce counter
      if(button1_count > 15)      //if 15 good button1 lows
        button1_good = 1;         //then set button1 good press flag
    }

    PIR3bits.TMR0IF = 0;          //clear timer0 interrupt flag
  }

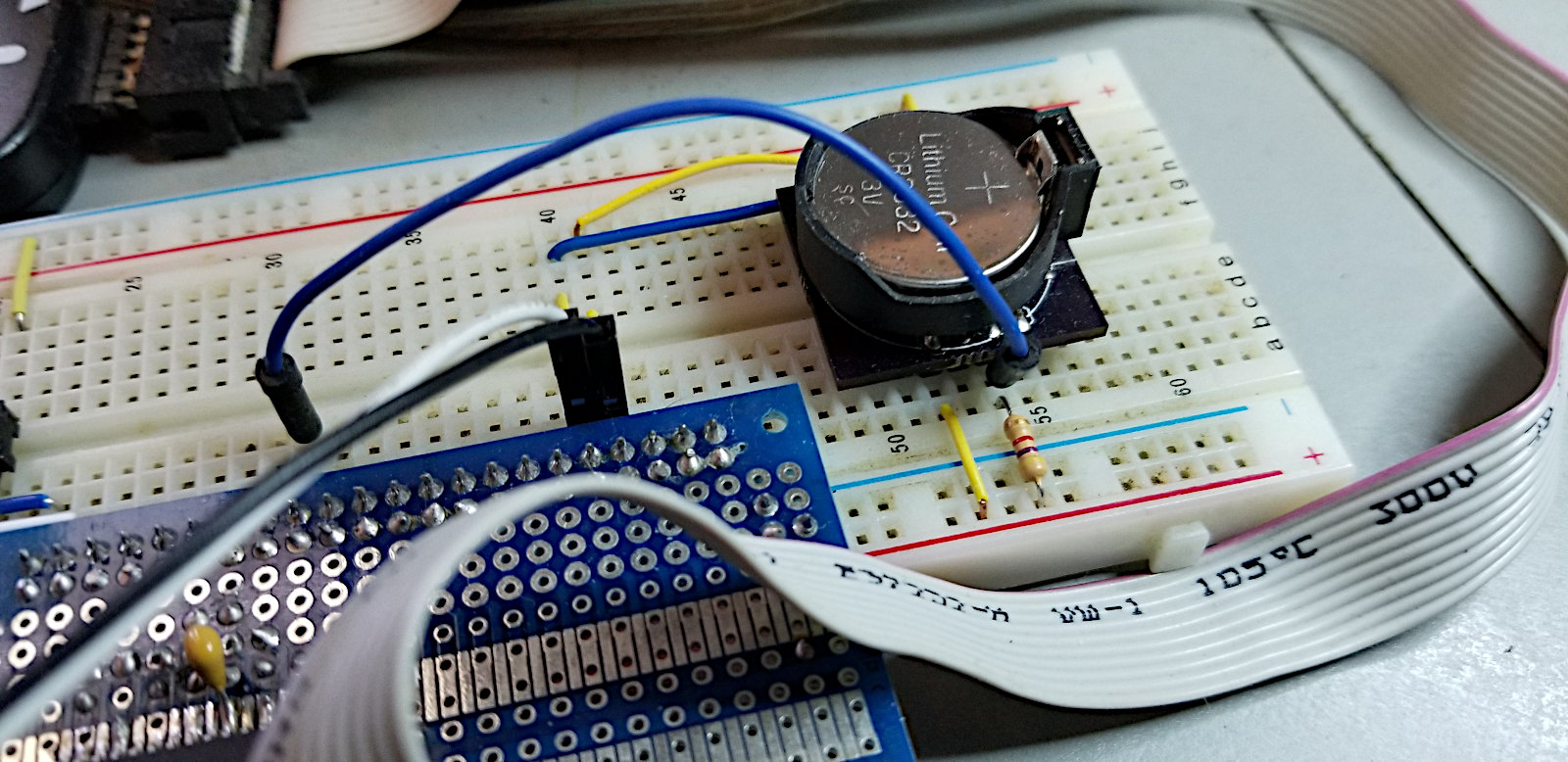

  if(IOCBFbits.IOCBF0 && PIE0bits.IOCIE){ //1Hz rising edge from RTC
    refresh = 1;                  //set display refresh flag
    IOCBFbits.IOCBF0 = 0;         //clear interrupt on change flag
  }

  if(backlight_count < 2500)
    backlight_count++;
  else{
    backlight_count = 0;
    backlight = 0x00;
  }
}

void main()
{
  int count;
  unsigned char setblink = 0;

  INTCON0bits.IPEN = 0;   //priority ints disabled
  T0CON1 = 0x41;          //timer0 fosc/4, prescale 1:2
  T0CON0 = 0x90;          //timer0 on, 16 bit, no postscale
  PIE3bits.TMR0IE = 1;    //TMR0 interrupt enabled

  IOCBPbits.IOCBP0 = 1;   //interrupt on change for RB0 enabled
  PIE0bits.IOCIE = 1;     //interrupt on change enabled

  TRISA = 0x03;           //porta all outs except bit 0 & 1
  ANSELA = 0;             //porta all digital
  WPUA = 0x03;            //porta weak pullups enabled on 0 & 1

  TRISB = 0x01;           //portb R0 is input
  ANSELB = 0;             //portb all digital

  TRISC = 0b00011000;     //portc all outs except i2c
  LATC = 0;               //portc all zeros
  ANSELC = 0;             //portc all digital
  __delay_ms(5);

  lcd_init();
  INTCON0bits.GIE = 1;    //global ints enabled

  while(1){
    if(refresh){
      display_refresh();
      refresh = 0;
    }

    if(button0_good){
      setclock();
      button0_good = 0;
      button0_count = 0;
    }

    if(button1_good){
      backlight_count = 0;
      backlight = 0x08;
      button1_good = 0;
      button1_count = 0;
    }
  }
}

void display_refresh(){
  start();              //read ds3231 rtc
  i2c_write(0xd0);
  i2c_write(0x00);
  restart();
  i2c_write(0xd1);      //setup for read
  seconds = i2c_read();
  minutes = i2c_read();
  hours = i2c_read();
  dayofweek = i2c_read();
  date = i2c_read();
  month = i2c_read();
  year = i2c_read_nack();
  stop();

  sec = seconds & 0x0f;           //prep data
  sec10 = (seconds & 0x70) >> 4;
  min = minutes & 0x0f;
  min10 = (minutes & 0x70) >> 4;
  hour = hours & 0x0f;
  hour10 = (hours & 0x10) >> 4;
  ampm = (hours & 0x20) >> 5;
  date1 = date & 0x0f;
  date10 = (date & 0x30) >> 4;
  mon = month & 0x0f;
  mon10 = (month & 0x10) >> 4;
  year1 = year & 0x0f;
  year10 = (year & 0xf0) >> 4;

  start();                        //display data
  i2c_write(0x4e);                //send lcd slave address & write bit
  lcd_cmd(0x80);                  //line 1
  sprintf(string,"%01u",hour10);
  lcd_string(string);
  sprintf(string,"%01u:",hour);
  lcd_string(string);
  sprintf(string,"%01u",min10);
  lcd_string(string);
  sprintf(string,"%01u:",min);
  lcd_string(string);
  sprintf(string,"%01u",sec10);
  lcd_string(string);
  sprintf(string,"%01u ",sec);
  lcd_string(string);
  if(ampm)
    lcd_string("PM");
  else
    lcd_string("AM");
  lcd_cmd(0xc0);                  //line 2
  sprintf(string,"%01u",mon10);
  lcd_string(string);
  sprintf(string,"%01u:",mon);
  lcd_string(string);
  sprintf(string,"%01u",date10);
  lcd_string(string);
  sprintf(string,"%01u:",date1);
  lcd_string(string);
  sprintf(string,"20%01u",year10);
  lcd_string(string);
  sprintf(string,"%01u",year1);
  lcd_string(string);
  stop();
}

void setclock(){
  unsigned char digit = 0;
  static __bit blinkflag;
  static __bit done;
  static __bit other;
  blinkflag = 0;
  done = 1;
  backlight = 0x08;                 //backlight on

  while(done){
    start();                        //display data
    i2c_write(0x4e);                //send lcd slave address & write bit
    lcd_cmd(0x80);                  //line 1

    if((digit == 1) && blinkflag)
      lcd_string(" ");
    else{
      sprintf(string,"%01u",hour10);
      lcd_string(string);
    }

    if((digit == 1) && blinkflag)
      lcd_string(" :");
    else{
      sprintf(string,"%01u:",hour);
      lcd_string(string);
    }

    if((digit == 2) && blinkflag)
      lcd_string(" ");
    else{
      sprintf(string,"%01u",min10);
      lcd_string(string);
    }

    if((digit == 2) && blinkflag)
      lcd_string(" :");
    else{
      sprintf(string,"%01u:",min);
      lcd_string(string);
    }

    if((digit == 3) && blinkflag)
      lcd_string(" ");
    else{
      sprintf(string,"%01u",sec10);
      lcd_string(string);
    }

    if((digit == 3) && blinkflag)
      lcd_string("  ");
    else{
      sprintf(string,"%01u ",sec);
      lcd_string(string);
    }

    if((digit == 4) && blinkflag)
      lcd_string("  ");
    else{
      if(ampm)
        lcd_string("PM");
      else
        lcd_string("AM");
    }

    lcd_cmd(0xc0);                  //line 2

    if((digit == 5) && blinkflag)
      lcd_string(" ");
    else{
      sprintf(string,"%01u",mon10);
      lcd_string(string);
    }

    if((digit == 5) && blinkflag)
      lcd_string(" :");
    else{
      sprintf(string,"%01u:",mon);
      lcd_string(string);
    }

    if((digit == 6) && blinkflag)
      lcd_string(" ");
    else{
      sprintf(string,"%01u",date10);
      lcd_string(string);
    }

    if((digit == 6) && blinkflag)
      lcd_string(" :");
    else{
      sprintf(string,"%01u:",date1);
      lcd_string(string);
    }

    if((digit == 7) && blinkflag)
      lcd_string("20 ");
    else{
      sprintf(string,"20%01u",year10);
      lcd_string(string);
    }

    if((digit == 7) && blinkflag)
      lcd_string(" ");
    else{
      sprintf(string,"%01u",year1);
      lcd_string(string);
    }
    stop();

    if(button0_good){
      ++digit;
      button0_count = 0;
      button0_good = 0;
    }

    if(button1_good){
      switch(digit){
        case 1:
          hour++;
          if(hour > 9){
            hour = 0;
            hour10 = 1;
          }
          if(hour10 == 1 && hour > 2){
            hour = 1;
            hour10 = 0;
          }
          break;
        case 2:
          min++;
          if(min > 9){
            min = 0;
            min10++;
            if(min10 > 5)
              min10 = 0;
          }
          if(min10 > 5 && min > 9){
            min = 0;
            min10 = 0;
          }
          break;
        case 3:
          sec = 0;
          sec10 = 0;
          break;
        case 4:
          ampm = !ampm;
          break;
        case 5:
          mon++;
          if(mon > 9){
            mon = 0;
            mon10 = 1;
          }
          if(mon10 == 1 && mon > 2){
            mon = 1;
            mon10 = 0;
          }
          break;
        case 6:
          date1++;
          if(date10 == 3 && date1 > 1){
            date1 = 1;
            date10 = 0;
          }
          else if(date1 > 9){
            date1 = 1;
            date10++;
          }
          break;
        case 7:
          year1++;
          if(year1 > 9){
            year1 = 0;
            year10++;
            if(year10 > 9)
              year10 = 0;
          }
          if(year10 == 9 && year1 > 9){
            year1 = 0;
            year10 = 0;
          }
      }
      button1_good = 0;
      button1_count = 0;
    }

    if(digit == 8){
      __delay_ms(50);
      done = 0;
    }

    if(blinkflag == 0)
      blinkflag = 1;
    else
      blinkflag = 0;

    backlight_count = 0;
    __delay_ms(200);
  }

  seconds = sec10;          //prep new data for clock setting
  seconds <<= 4;
  seconds = seconds | sec;

  minutes = min10;
  minutes <<= 4;
  minutes = minutes | min;

  hours = hour10;           //high digit
  hours <<= 4;              //shift it into place
  digit = ampm;             //move am/pm bit into place
  digit <<= 5;
  hours = hours | 0x40;     //12 hour time bit
  hours = hours | digit;    //am/pm bit
  hours = hours | hour;     //low digit

  month = mon10;
  month <<= 4;
  month = month | mon;

  date = date10;
  date <<= 4;
  date = date | date1;

  year = year10;
  year <<= 4;
  year = year | year1;

  start();                //set the clock
  i2c_write(0xd0);        //send ID code & write bit
  i2c_write(0x00);        //register address
  i2c_write(seconds);     //$00 set seconds
  i2c_write(minutes);     //$01 set minutes
  i2c_write(hours);       //$02 set hours
  i2c_write(dayofweek);   //$03 set day
  i2c_write(date);        //$04 set date
  i2c_write(month);       //$05 set month
  i2c_write(year);        //$06 set year
  restart();
  i2c_write(0xd0);        //ID code & write bit
  i2c_write(0x0e);        //register address
  i2c_write(0x40);        //enable 1Hz square wave
  stop();
}

//* I2C functions *
//*****************
unsigned char i2c_read(void){
  unsigned char i,tmp = 0;
  static __bit mbit = 0;
  __delay_us(20);
  for(i=0;i<8;i++){
    dat = 1;            //sda high
    __delay_us(20);      //minimum clock low time
    clk = 1;            //clk high
    __delay_us(10);       //1/2 min clock high time
    mbit = PORTCbits.RC4;     //read the data bit
    if(mbit)            //store it in tmp
      tmp = tmp | 0x01;
    __delay_us(10);       //last 1/2 min clock high time
    if(i < 7)
      tmp <<= 1;        //shift left for next bit
    clk = 0;            //lower clock
    __delay_us(20);      //minimum clock low time
  }
  PORTC = 0;
  dat = 0;              //send ACK
  __delay_us(20);        //data settle time
  i2c_clock();          //pulse the clock
  dat = 1;              //release ACK
  __delay_us(20);        //gap between next byte
  return(tmp);
}

unsigned char i2c_read_nack(void){
  unsigned char i,tmp = 0;
  static __bit mbit;
  __delay_us(20);
  for(i=0;i<8;i++){
    dat = 1;            //SDA = input
    __delay_us(20);       //minimum clock low time
    clk = 1;            //release clock
    __delay_us(20);       //1/2 min clock high time
    mbit = PORTCbits.RC4;     //read the data bit
    if(mbit)            //store it in tmp
      tmp = tmp | 0x01;
    __delay_us(20);      //last 1/2 min clock high time
    if(i < 7)
      tmp <<= 1;          //shift left for next bit
    clk = 0;            //lower clock
    __delay_us(20);       //minimum clock low time
  }
  PORTCbits.RC4 = 0;
  dat = 1;                //send NACK
  __delay_us(20);           //data settle time
  i2c_clock();            //pulse the clock
  return(tmp);
}

unsigned char i2c_write(unsigned char x){
  unsigned char i;
  __delay_us(20);
  for(i=0;i<8;i++){
    dat = 0;          //set data bit low
    if(x &  0x80)     //if output bit is high
      dat = 1;        //then set data bit high
    i2c_clock();      //clock it out
    x <<= 1;          //shift next bit into position
  }
  //get ack
  dat = 1;            //set data high (input)
  PORTCbits.RC4 = 0;        //clear data bit
  clk = 1;            //set clock high
  __delay_us(10);       //wait half a clock pulse
  if(PORTCbits.RC4)         //sample data bit
    return(1);        //nack error
  __delay_us(10);       //ack good, wait other half of clock pulse
  clk = 0;            //set clock low
  __delay_us(20);
  dat = 1;            //set data
  return(0);
}

void start(void){     //send start condition
  dat = 0;            //set data low
  __delay_us(20);
  clk = 0;
  __delay_us(20);
}

void restart(void){     //send start condition
  dat = 1;              //release data
  __delay_us(20);
  clk = 1;
  __delay_us(20);
  dat = 0;
  __delay_us(20);
  clk = 0;
  __delay_us(20);
}

void stop(void){      //send stop condition
  dat = 0;            //set data low
  __delay_us(20);
  clk = 1;            //set clock high
  __delay_us(20);       //stop delay
  dat = 1;            //set data high
  __delay_us(20);
}

void i2c_clock(void){
  clk = 1;            //set clock high
  __delay_us(20);
  clk = 0;            //set clock low
  __delay_us(20);
}

//* LCD functions *
//*****************
void lcd_cls(void){
  start();
  lcd_cmd(0x80);                  //line 1
  lcd_string("                ");
  lcd_cmd(0xc0);                  //line 2
  lcd_string("                ");
  stop();
}

void lcd_string(char *senpoint)
{
    while(*senpoint != '\0')
    {
        lcd_char(*senpoint);
        senpoint++;
    }
}

void lcd_cmd(unsigned char letter)
{
    unsigned char temp;
    temp = letter;
    temp = temp & 0xf0;       //clear lower nybble
  temp = temp | 0b00000100; //set E, RW = write, RS = command
  temp = temp | backlight;  //set backlight on or off
  i2c_write(temp);          //send upper nybble
  temp = temp & 0b11110000; //clear E to latch data and resend
  temp = temp | backlight;  //set backlight on or off
  i2c_write(temp);

    temp = letter;
    temp = temp & 0x0f;       //clear upper nybble
  temp = temp << 4;         //shift left 4 bits
  temp = temp | 0b00000100; //send lower nybble
  temp = temp | backlight;  //set backlight on or off
  i2c_write(temp);
  temp = temp & 0b11110000;
  temp = temp | backlight;  //set backlight on or off
  i2c_write(temp);
}

void lcd_char(unsigned char letter)
{
    unsigned char temp;
    temp = letter;
    temp = temp & 0xf0;       //clear lower nybble
  temp = temp | 0b00000101; //set E, RW = write, RS = data
  temp = temp | backlight;  //set backlight on or off
  i2c_write(temp);          //send upper nybble
  temp = temp & 0b11110001; //clear E to latch data and resend
  temp = temp | backlight;  //set backlight on or off
  i2c_write(temp);

    temp = letter;
    temp = temp & 0x0f;       //clear upper nybble
  temp = temp << 4;         //shift left 4 bits
  temp = temp | 0b00000101; //send lower nybble
  temp = temp | backlight;  //set backlight on or off
  i2c_write(temp);
  temp = temp & 0b11110001;
  temp = temp | backlight;  //set backlight on or off
  i2c_write(temp);
}

void lcd_nybble(unsigned char nyb)
{
  nyb = nyb << 4;           //shift left 4 bits
  nyb = nyb | 0b00001100;   //send lower nybble
  i2c_write(nyb);
  nyb = nyb & 0b11111000;
  i2c_write(nyb);
}

void lcd_init(void)
{
  start();
  i2c_write(0x4e);          //send lcd slave address & write bit
  __delay_ms(50);
    lcd_nybble(0x03);
    __delay_ms(5);
    lcd_nybble(0x03);
    __delay_us(160);
    lcd_nybble(0x03);
    __delay_us(160);
    lcd_nybble(0x02);
    __delay_us(160);
    lcd_cmd(0x28);            //set 4-bit mode and 2 lines
    __delay_us(160);
    lcd_cmd(0x10);            //cursor move & shift left
    __delay_us(160);
    lcd_cmd(0x06);            //entry mode = increment
    __delay_us(160);
    lcd_cmd(0b00001100);      //display on - cursor & blink off
    __delay_us(160);
    lcd_cmd(0x01);            //clear display
    __delay_us(160);
  stop();
}

void blink(void){
  for(int x=0;x<10;x++){
    PORTAbits.RA0 = 0;
    __delay_ms(35);
    PORTAbits.RA0 = 1;        //ra0 high
    __delay_ms(20);
  }
  PORTAbits.RA0 = 0;          //turn LED off at end
}

lcd-i2c-rtc.h

// CONFIG1L
#pragma config FEXTOSC = ECH    // External Oscillator Selection (EC (external clock) above 8 MHz; PFM set to high power)
#pragma config RSTOSC = HFINTOSC_64MHZ// Reset Oscillator Selection (HFINTOSC with HFFRQ = 64 MHz and CDIV = 1:1)

// CONFIG1H
#pragma config CLKOUTEN = OFF   // Clock out Enable bit (CLKOUT function is disabled)
#pragma config PR1WAY = ON      // PRLOCKED One-Way Set Enable bit (PRLOCK bit can be cleared and set only once)
#pragma config CSWEN = ON       // Clock Switch Enable bit (Writing to NOSC and NDIV is allowed)
#pragma config FCMEN = ON       // Fail-Safe Clock Monitor Enable bit (Fail-Safe Clock Monitor enabled)

// CONFIG2L
#pragma config MCLRE = EXTMCLR  // MCLR Enable bit (If LVP = 0, MCLR pin is MCLR; If LVP = 1, RE3 pin function is MCLR )
#pragma config PWRTS = PWRT_OFF // Power-up timer selection bits (PWRT is disabled)
#pragma config MVECEN = OFF     // Multi-vector enable bit (Multi-vector disabled, Vector table not used for interrupts)
#pragma config IVT1WAY = ON     // IVTLOCK bit One-way set enable bit (IVTLOCK bit can be cleared and set only once)
#pragma config LPBOREN = OFF    // Low Power BOR Enable bit (ULPBOR disabled)
#pragma config BOREN = SBORDIS  // Brown-out Reset Enable bits (Brown-out Reset enabled , SBOREN bit is ignored)

// CONFIG2H
#pragma config BORV = VBOR_2P45 // Brown-out Reset Voltage Selection bits (Brown-out Reset Voltage (VBOR) set to 2.45V)
#pragma config ZCD = OFF        // ZCD Disable bit (ZCD disabled. ZCD can be enabled by setting the ZCDSEN bit of ZCDCON)
#pragma config PPS1WAY = ON     // PPSLOCK bit One-Way Set Enable bit (PPSLOCK bit can be cleared and set only once; PPS registers remain locked after one clear/set cycle)
#pragma config STVREN = ON      // Stack Full/Underflow Reset Enable bit (Stack full/underflow will cause Reset)
#pragma config DEBUG = OFF      // Debugger Enable bit (Background debugger disabled)
#pragma config XINST = OFF      // Extended Instruction Set Enable bit (Extended Instruction Set and Indexed Addressing Mode disabled)

// CONFIG3L
#pragma config WDTCPS = WDTCPS_31// WDT Period selection bits (Divider ratio 1:65536; software control of WDTPS)
#pragma config WDTE = OFF       // WDT operating mode (WDT Disabled; SWDTEN is ignored)

// CONFIG3H
#pragma config WDTCWS = WDTCWS_7// WDT Window Select bits (window always open (100%); software control; keyed access not required)
#pragma config WDTCCS = SC      // WDT input clock selector (Software Control)

// CONFIG4L
#pragma config BBSIZE = BBSIZE_512// Boot Block Size selection bits (Boot Block size is 512 words)
#pragma config BBEN = OFF       // Boot Block enable bit (Boot block disabled)
#pragma config SAFEN = OFF      // Storage Area Flash enable bit (SAF disabled)
#pragma config WRTAPP = OFF     // Application Block write protection bit (Application Block not write protected)

// CONFIG4H
#pragma config WRTB = OFF       // Configuration Register Write Protection bit (Configuration registers (300000-30000Bh) not write-protected)
#pragma config WRTC = OFF       // Boot Block Write Protection bit (Boot Block (000000-0007FFh) not write-protected)
#pragma config WRTD = OFF       // Data EEPROM Write Protection bit (Data EEPROM not write-protected)
#pragma config WRTSAF = OFF     // SAF Write protection bit (SAF not Write Protected)
#pragma config LVP = OFF        // Low Voltage Programming Enable bit (HV on MCLR/VPP must be used for programming)

// CONFIG5L
#pragma config CP = OFF         // PFM and Data EEPROM Code Protection bit (PFM and Data EEPROM code protection disabled)

// CONFIG5H

//-------------------------------------------

#include <xc.h>
#include <stdio.h>

#define _XTAL_FREQ  64000000

void __interrupt() bleh(void);
void start(void);
void restart(void);
void stop(void);
void ack(void);
void nack(void);
void i2c_clock(void);
unsigned char i2c_write(unsigned char);
unsigned char i2c_read(void);
unsigned char i2c_read_nack(void);
void display_refresh(void);
void setclock(void);

void lcd_cls(void);
void lcd_cmd(unsigned char);
void lcd_char(unsigned char);
void lcd_init(void);
void lcd_string(char *);
void lcd_nybble(unsigned char);void setclock(void);

Next Post Previous Post
